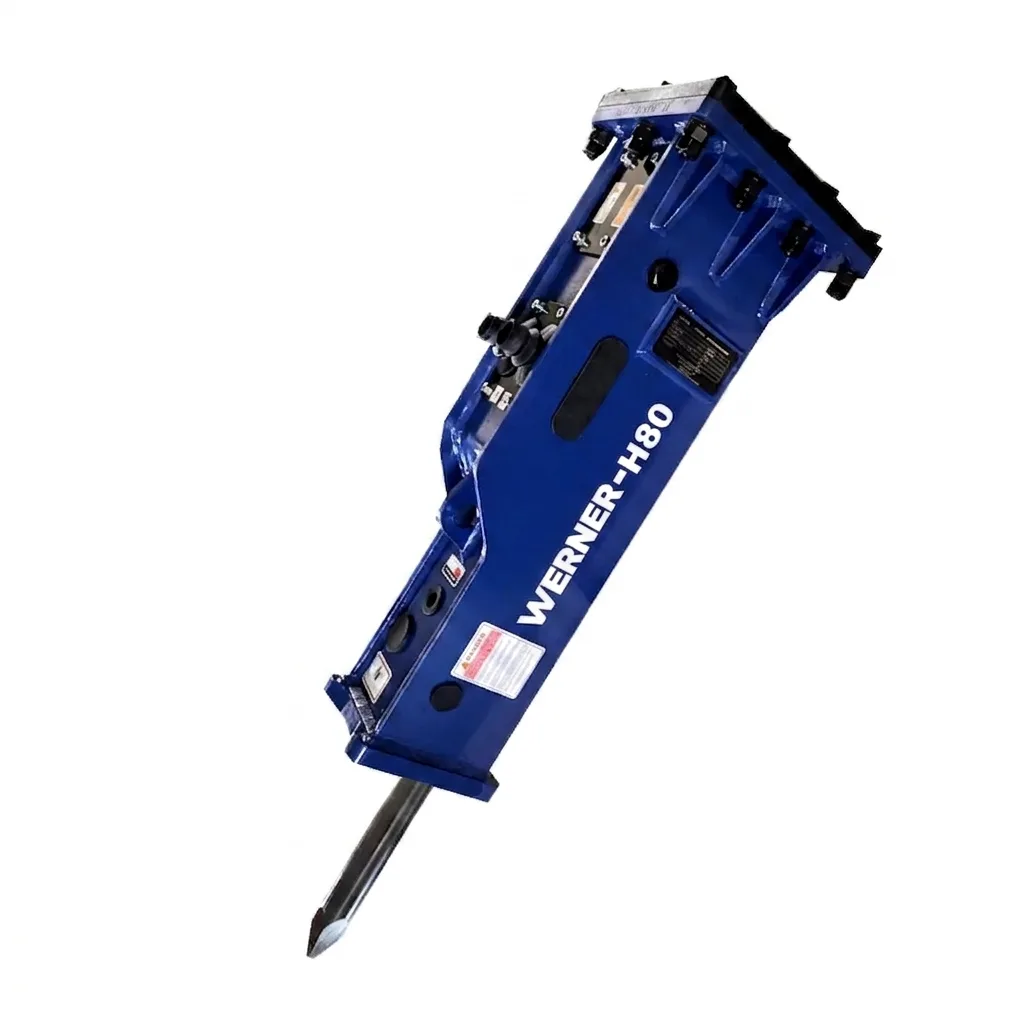

The Werner H80 is an 80 kg hydraulic demolition breaker for mini excavators in the 0.8–1.5 tonne class. It keeps the same hydraulic requirements as the 60 kg model, but the extra 20 kg and the 40 mm chisel translate directly into faster progress through reinforced concrete, thick slabs and rock.
With 800–1400 blows per minute and a flow of 15–25 l/min, the H80 runs on the same auxiliary circuit you already have set up for a smaller breaker – no changes to the hydraulic system needed.
Technical features at a glance
Weight class: 0.8–1.5 tonnes – For mini excavators from 800 kg up to 1.5 tonnes.
Impact energy: 180 joules – Strong, consistent blows for daily demolition work.
Hydraulic hose connection: 3/8″ (9.5 mm) – High-pressure connection for reliable pressure transfer.
Blows per minute: 800–1400 bpm – High impact frequency for fast, controlled breaking.
Hammer weight: 80 kg – 20 kg more mass than the H60 for faster progress in hard material.
Chisel/point diameter: 40 mm – Larger cross-section – better bending resistance and longer tool life in reinforced concrete.
Operating pressure: 90–120 kg/cm² – Matches the auxiliary circuit of most mini excavators.
Hydraulic oil flow: 15–25 l/min – Same oil demand as the H60 – fits the circuit you already have.
Mounting: Triangle / vertical (100/132)
H60, H80 or H100? How to choose
- Choose the H60 for micro excavators of 0.5–1 tonne.
- Choose the H80 for machines of 0.8–1.5 tonnes, especially if you break every day or work with reinforced concrete and thick floors.
- Choose the H100 for machines of 1.5–2.5 tonnes.
- Nitrogen-charged accumulator chamber. Constant energy on every blow and reduced oil consumption.
- Dust ring. Keeps concrete dust away from the bushings and piston – the main cause of premature wear on small breakers.
- Closed box-type housing. Lower noise and vibration – a real advantage on job sites in residential areas.
- Spare parts in stock. Chisels, bushings, seals and repair kits available at short notice.
Recommended applications
- Breaking reinforced concrete, industrial floors and thin slabs
- Interior demolition and renovation in confined spaces
- Trenches for utilities, sewage and service connections
- Removing asphalt, kerbs and concrete platforms
- Earthworks in stony or frozen ground and small rock
Compatible mini excavators
The 80 kg hydraulic breaker fits mini excavators in the 0.8–1.5 tonne class, for example:
- Kubota: K008-3, U10-3
- Yanmar: SV08
- Takeuchi: TB210R, TB215R
- Bobcat: E10
- JCB: 8008 CTS, 8010 CTS, 8014
- Caterpillar: 300.9D
- Komatsu: PC09, PC14R
- Hitachi: ZX10U
- Wacker Neuson: 803
- Volvo: EC15
- Case: CX15
- Develon (Doosan): DX10Z
Can’t find your machine in the list? Send us the model and we will confirm compatibility before you order.
Delivery, warranty and advice
Brand-new unit with a 12-month warranty and a proper invoice. Before you order, we help you choose the right model based on your machine’s operating weight and the flow of its auxiliary circuit.
Frequently asked questions
What is the real difference between the Werner H60 and H80?
Both need the same 15–25 l/min flow. The H60 is made for 0.5–1 tonne machines, while the H80 is 20 kg heavier, uses a 40 mm chisel instead of 35 mm and is designed for 0.8–1.5 tonne machines, so it progresses faster in hard material.
Can I fit the H80 on a 1.5 tonne mini excavator?
Yes, 1.5 tonnes is the upper end of the recommended class. For heavier machines up to 2.5 tonnes choose the Werner H100.
What maintenance does the breaker need?
Grease every 2–3 hours of operation, check the bushings and dust ring regularly and always work with a sharp chisel. Most failures on small breakers are caused by insufficient greasing.
