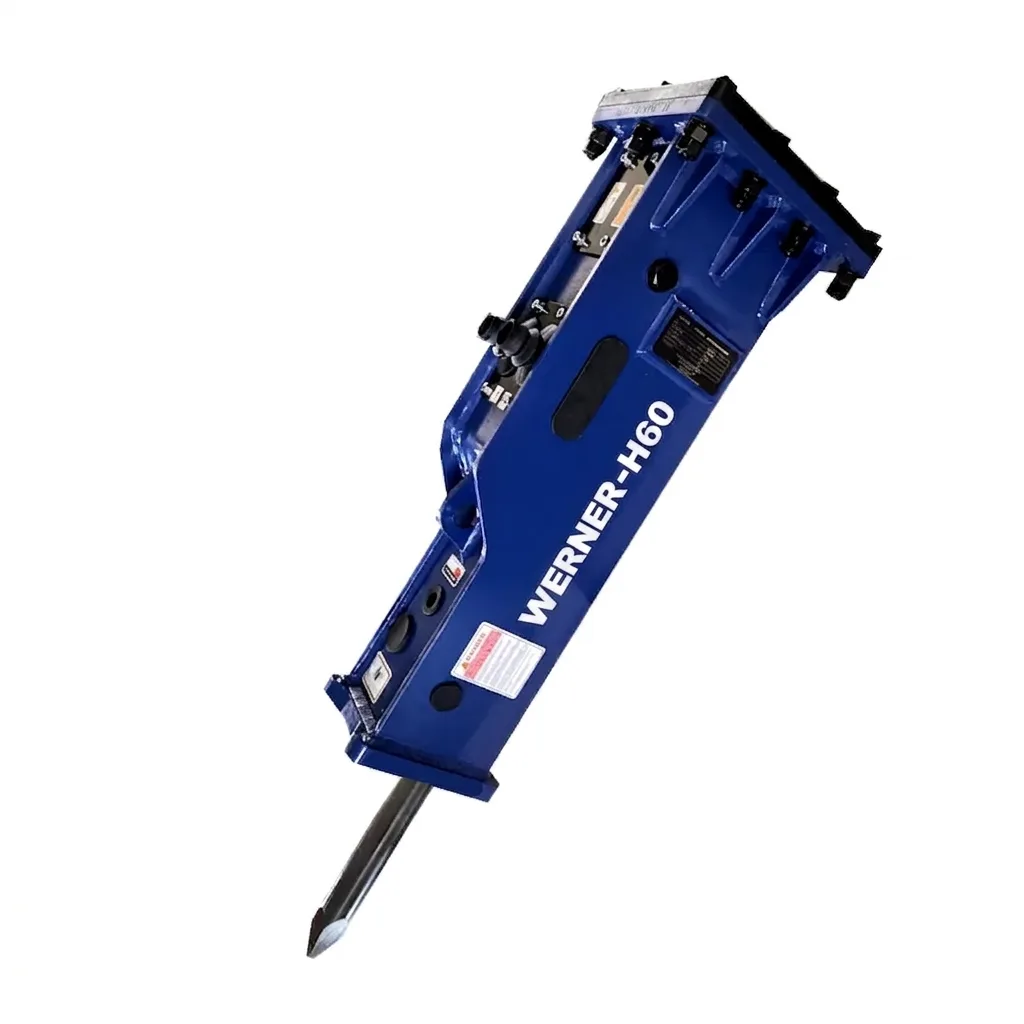

The Werner H60 is a 60 kg hydraulic demolition breaker designed for micro excavators in the 0.5–1 tonne class. It is the lightest model in the Werner range and the right tool when space is tight: interior demolition, utility trenching, work in yards and basements – wherever a larger machine simply does not fit.
With 800–1400 blows per minute and a 35 mm chisel, the H60 breaks concrete, asphalt and small rock quickly and with full control. It needs a flow of only 15–25 l/min, so it does not overload the small machine’s pump during continuous work.
Technical features at a glance
Weight class: 0.5–1.0 tonnes – Made for micro excavators up to 1 tonne.
Impact energy: 180 joules – Precise, controlled breaking power for light demolition.
Hydraulic hose connection: 3/8″ (9.5 mm) – High-pressure connection for reliable pressure transfer.
Blows per minute: 800–1400 bpm – High impact frequency for fast, controlled breaking.
Hammer weight: 60 kg – Light enough not to unbalance machines of 0.5–1 tonne.
Chisel/point diameter: 35 mm – Chisel included; spare moil points, flat chisels and wedge chisels available separately.
Operating pressure: 90–120 kg/cm² – Matches the auxiliary circuit of most mini excavators.
Hydraulic oil flow: 15–25 l/min – Low oil demand – gentle on the micro excavator’s hydraulic pump.
Mounting: Triangle / vertical (100/132)
Why choose the Werner H60
- Correct weight-to-machine ratio. At 60 kg it does not unbalance a 0.5–1 tonne machine and does not overstress the boom and pins.
- Nitrogen-charged accumulator chamber. Constant energy on every blow and reduced oil consumption.
- Dust ring. Keeps concrete dust away from the bushings and piston – the main cause of premature wear on small breakers.
- Closed box-type housing. Lower noise and vibration – a real advantage on job sites in residential areas.
- Spare parts in stock. Chisels, bushings, seals and repair kits available at short notice.
Recommended applications
- Breaking concrete, asphalt and floors
- Interior demolition and renovation in confined spaces
- Trenches for utilities, sewage and service connections
- Removing small foundations, kerbs and pavements
- Earthworks in stony or frozen ground
Compatible mini excavators
The 60 kg hydraulic breaker fits micro excavators in the 0.5–1 tonne class, for example:
- Kubota: K008-3, U10-3
- Yanmar: SV08
- Takeuchi: TB210R
- Bobcat: E10
- JCB: 8008 CTS, 8010 CTS
- Caterpillar: 300.9D
- Komatsu: PC09
- Hitachi: ZX10U
- Wacker Neuson: 803
- Develon (Doosan): DX10Z
Can’t find your machine in the list? Send us the model and we will confirm compatibility before you order.
Delivery, warranty and advice
Brand-new unit with a 12-month warranty and a proper invoice. Before you order, we help you choose the right model based on your machine’s operating weight and the flow of its auxiliary circuit.
Frequently asked questions
Which machine do I need for a 60 kg hydraulic breaker?
The Werner H60 is designed for machines of 0.5–1 tonne. For machines of 0.8–1.5 tonnes choose the Werner H80, and for 1.5–2.5 tonnes the Werner H100.
What hydraulic flow is required?
15–25 l/min at an operating pressure of 90–120 kg/cm². Check the auxiliary (hammer) circuit flow in your machine’s manual.
Is a chisel included?
Yes, every Werner H60 comes with a 35 mm chisel. Spare tools (moil point, flat chisel, wedge chisel) are available separately.
